Name: High Accuracy Portable 3D Scanner for Reverse Engineering/Industrial Design/Cultural Heritage Preservation
Brand: Hoyamo and Sinowon Inc
SKU: STL-58L
Availability: InStock

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Resaltar:

High Accuracy Portable 3D Scanner

Reverse Engineering Handheld 3D Scanner

Industrial Handheld 3D Scanner

Información básica

Lugar de origen: Dongguan

Nombre de la marca: Hoyamo

Certificación: CE

Número de modelo: STL-58L

Pago y Envío Términos

Detalles de empaquetado: MADERA CONTRACHAPADA

Tiempo de entrega: 30 días de trabajo

Condiciones de pago: L/C T/T

Capacidad de la fuente: 100 sets/mes

Galería

High Accuracy Portable 3D Scanner for Reverse Engineering/Industrial Design/Cultural Heritage Preservation

Descripción de producto

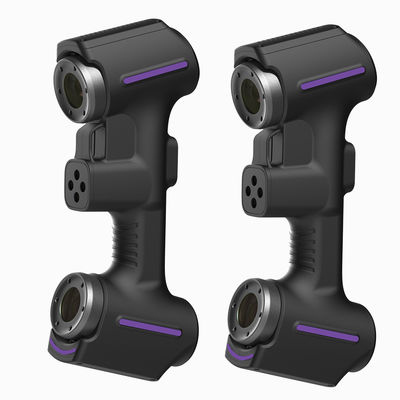

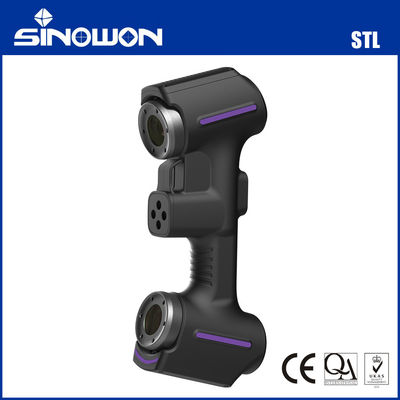

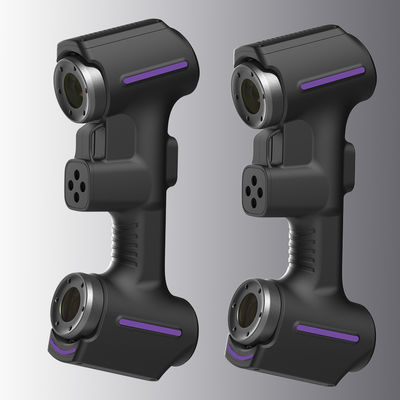

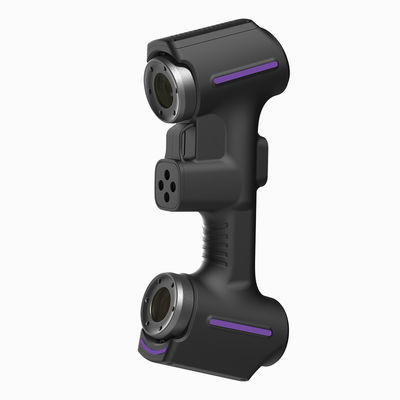

Handheld 3D Scanner STL-58L

Product Features

u STL-58M integrates AI algorithms into metrology-grade 3D scanning. With a refined, minimalist design, it emphasizes practicality and portability. The device is rugged, durable, and easy to carry.

u Unrestricted by working environments, STL-58M enables 3D measurements anytime, anywhere — whether in tight spaces or on large-scale objects.

u The innovative design adopts an internally sealed independent core cavity paired with a passive fin heat sink to ensure linear temperature stability and improve overall precision repeatability.

u Equipped with 50 blue crossed laser lines, it delivers up to 7,100,000 measurements per second with a scan area of 650 mm × 550 mm, ensuring a seamless and efficient 3D digitization experience.

u Metrology-grade precision captures every detail, while ultra-fast scanning speeds enable efficient 3D modeling.

Product Specifications

Handheld 3D Scanner
Model		STL-58M
Code #		310-121
Scanning Mode	High-Speed Scanning	50 Crossed blue laser scanning lines
	Precision Scanning	7 Beams of parallel blue laser lines
	Deep Hole Scanning	1 Additional blue laser line
Highest Precision		0.020mm
Maximum Scanning Speed		7,100,000 measurements per second
Maximum Scanning Field		650mm×550mm
Laser Class		Class II (Eye Safe)
Maximum Resolution		0.01mm
Volume Accuracy		0.015mm+0.035mm/m 0.015mm+0.025mm/m (Selection of photogrammetric scale bars)
Reference Distance		300mm (200mm fine mode)
Depth of Field		550mm
Output Format		STL, PLY, TXT etc.
Operating Temperature		-10°C to 40°C
Interface Type		Recommended USB 3.0
